NOTE: THIS LISTING IS FOR THE BULKHEAD MOUNTING PLATE ONLY, DOES NOT INCLUDE THE CONNECTORS
Do you use the popular DEUTSCH HD30 Connectors in your vehicle build or race car? Or, are you adding Deutsch HDP20 connectors and want to mount them professionally?

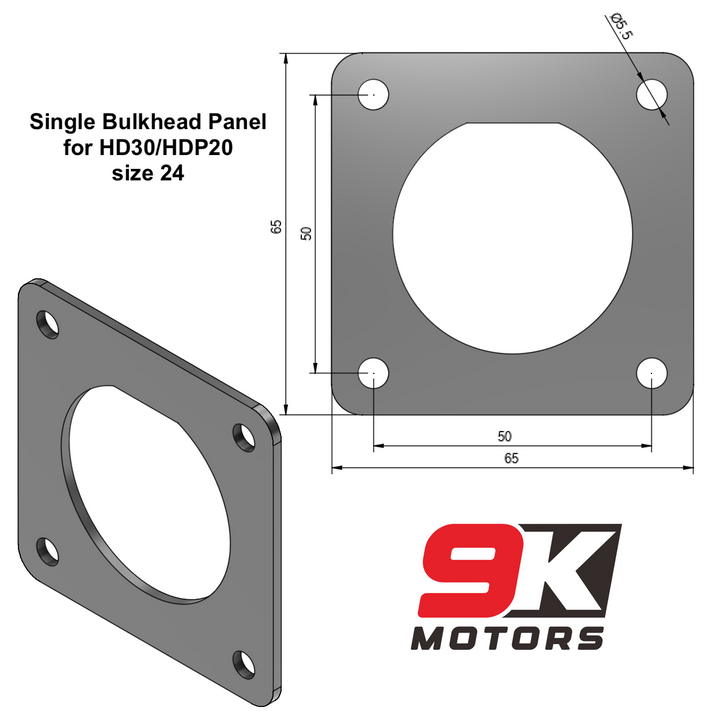

This is a CNC laser-cut bulkhead plate that is made to perfectly fit all Deutsch Size 24 HD30 and HDP20 flange-mount connector housings (receptacles). They are made from hefty, 12 gauge 5052 aluminum which can be gently bent to fit around minor curves in firewalls, and have a show-ready mill finish "shiny" or "polished" look. They can also be painted or powder coated to match your car.
Includes 4x stainless bolts and lock nuts for easy install.
The following receptacle housings (connectors) are known to fit perfectly:
HD34-24-14PN
HD34-24-16PN
HD34-24-18PN
HD34-24-19PN
HD34-24-21PN
HD34-24-23PN
HD34-24-29PN
HD34-24-31PN
HD34-24-33PN
HD34-24-35PN
HD34-24-47PN
HD34-24-7PN
HD34-24-9PN
HDP24-24-14PN
HDP24-24-16PN
HDP24-24-18PN
HDP24-24-19PN
HDP24-24-21PN
HDP24-24-23PN
HDP24-24-29PN
HDP24-24-31PN
HDP24-24-33PN
HDP24-24-35PN
HDP24-24-47PN
HDP24-24-7PN
HDP24-24-9PN
You will also need to provide your own nut and optionally a lock washer, which are sold by TE/Deutsch as well:
Metal nut part number 112263-90, optional lock washer 2414-001-2486 for use with HD30 size 24
Plastic nut part number 2411-001-2405, optional lock washer 2414-001-2486 for use with HDP20 size 24
Stainless mounting bolts for all 4 corners are included, but you can use your own mounting bolts or rivets if you'd like a more custom look.
Please note, this product page is for a laser-cut aluminum bulkhead mounting plate (and the mounting bolts to affix the plate) ONLY, and NO CONNECTORS/HOUSINGS ARE INCLUDED. This is because we try to stock only American-made parts and supplies, and unfortunately these connectors are still made in China, so you'll need to purchase them from TE or a supplier like Mouser or Digikey. Connectors are not included and are shown in the photos for fitment purposes only!
Sold as a plate with 4x stainless mounting bolts and nuts, available in single connector or dual connector, as well as a custom shape made for the GM C100 connector used in F-body and other 80's and 90's Chevrolet/Pontiac/GMC vehicles.
