Are you using the Holley Terminator X Max ECU in your LS swap or custom build, and want to mount it where you can easily access it? Or, are you running a tubed race chassis with the Terminator X Max and need a good way to keep it secured?
Our Ultimate Mount for the Terminator X Max is perfect for you - it's the most over-engineered ECU mount on the market!
Don't think that this is the ULTIMATE way to mount your Terminator X Max? Look at all these features:
- Made in North Carolina, USA with American-sourced heavy duty aluminum - not made in China!
- 90° mount with 3 ECU mounting orientations:
- ECU on the top with connectors facing away from the mounting surface - perfect for mounting horizontally or vertically behind the dash or on the firewall
- ECU on top with the connectors facing the mounting surface - perfect for tube mount or mounting in front of a firewall pass-through

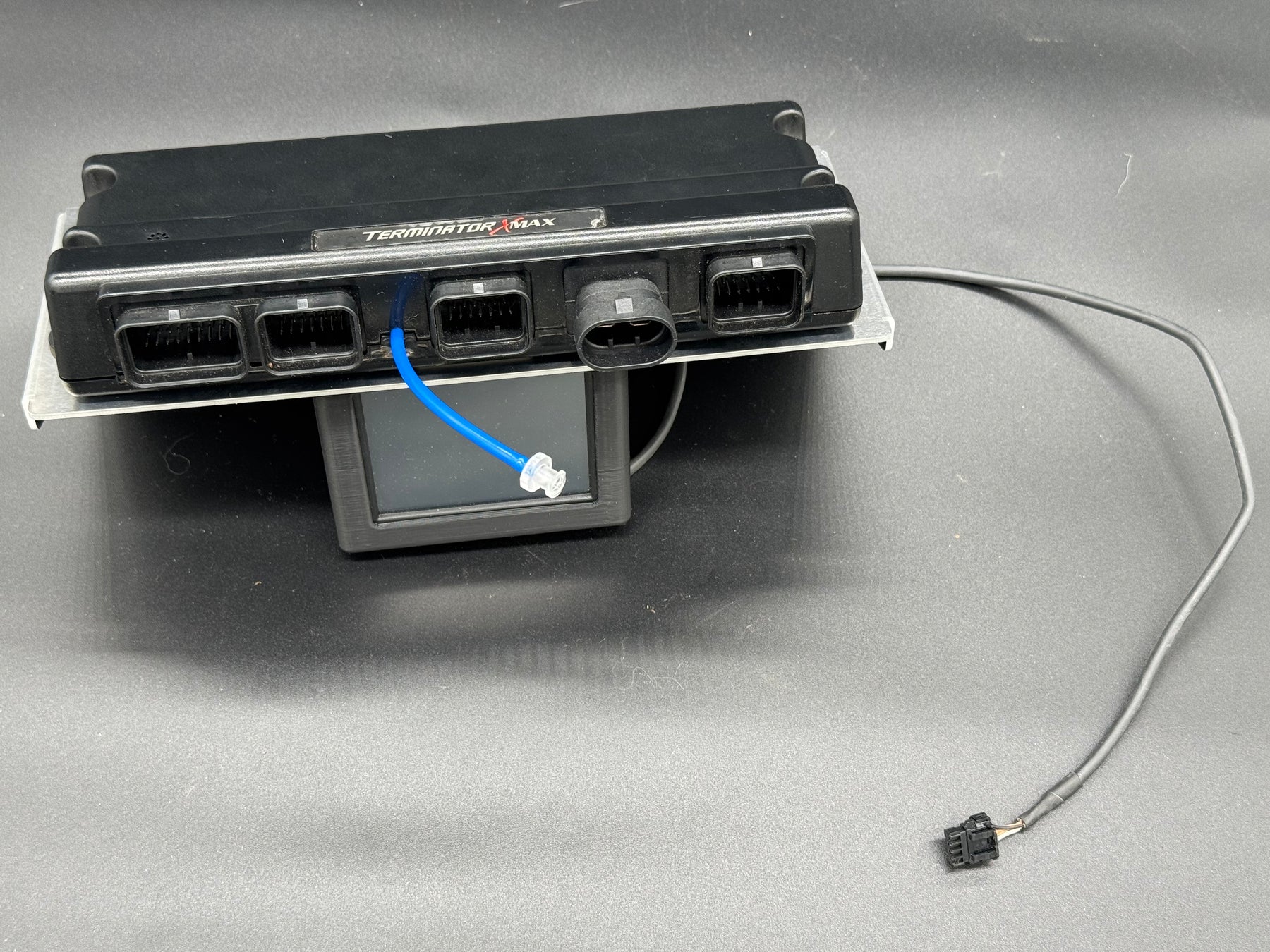

- ECU on the bottom with connectors facing away from the mounting surface - perfect for vertical mount or race car setups so the ECU is protected but accessible. Includes a precision cut-out on the back flange so that the LED's on the ECU can be viewed through the rear of the mount for troubleshooting!

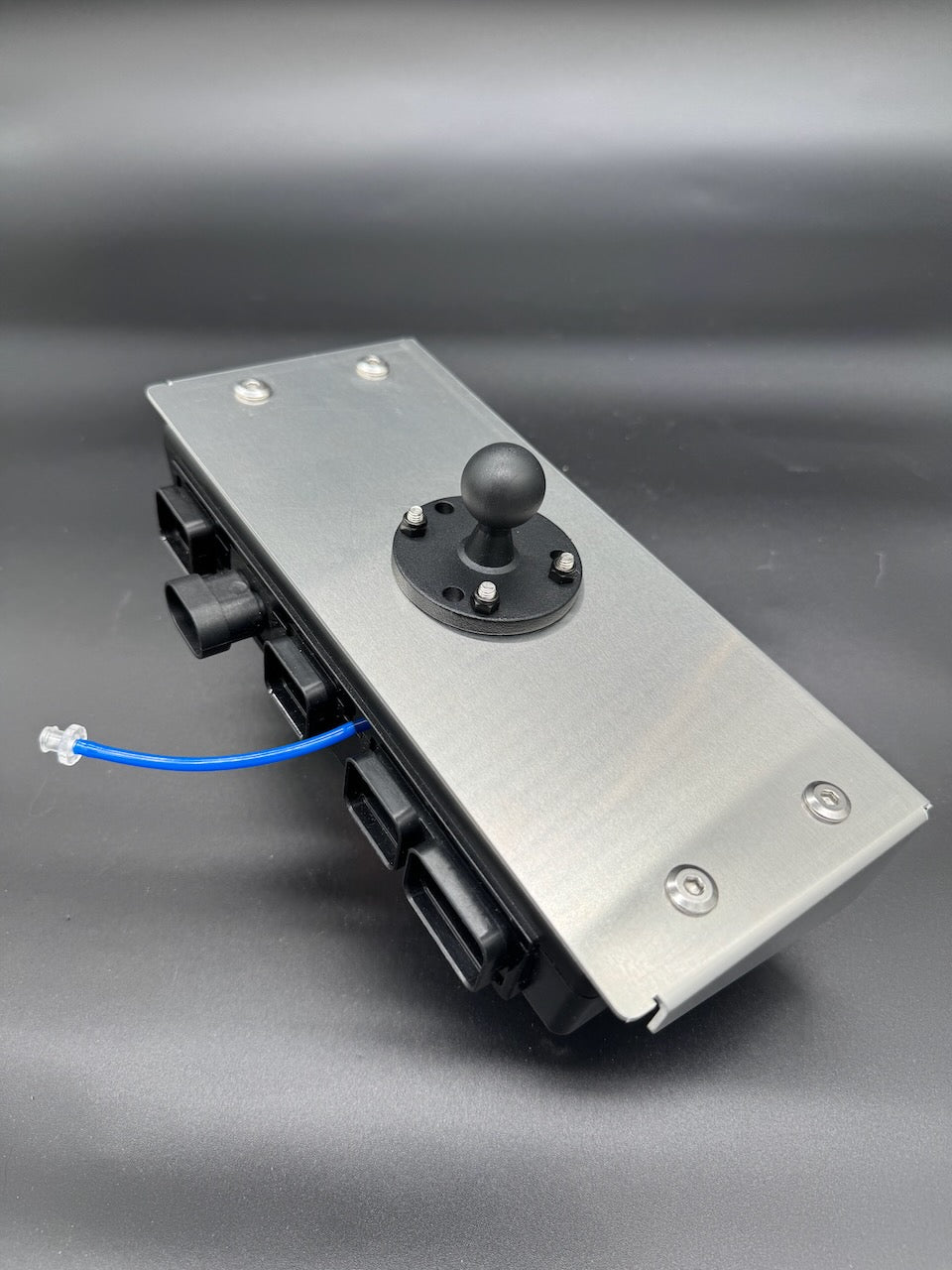

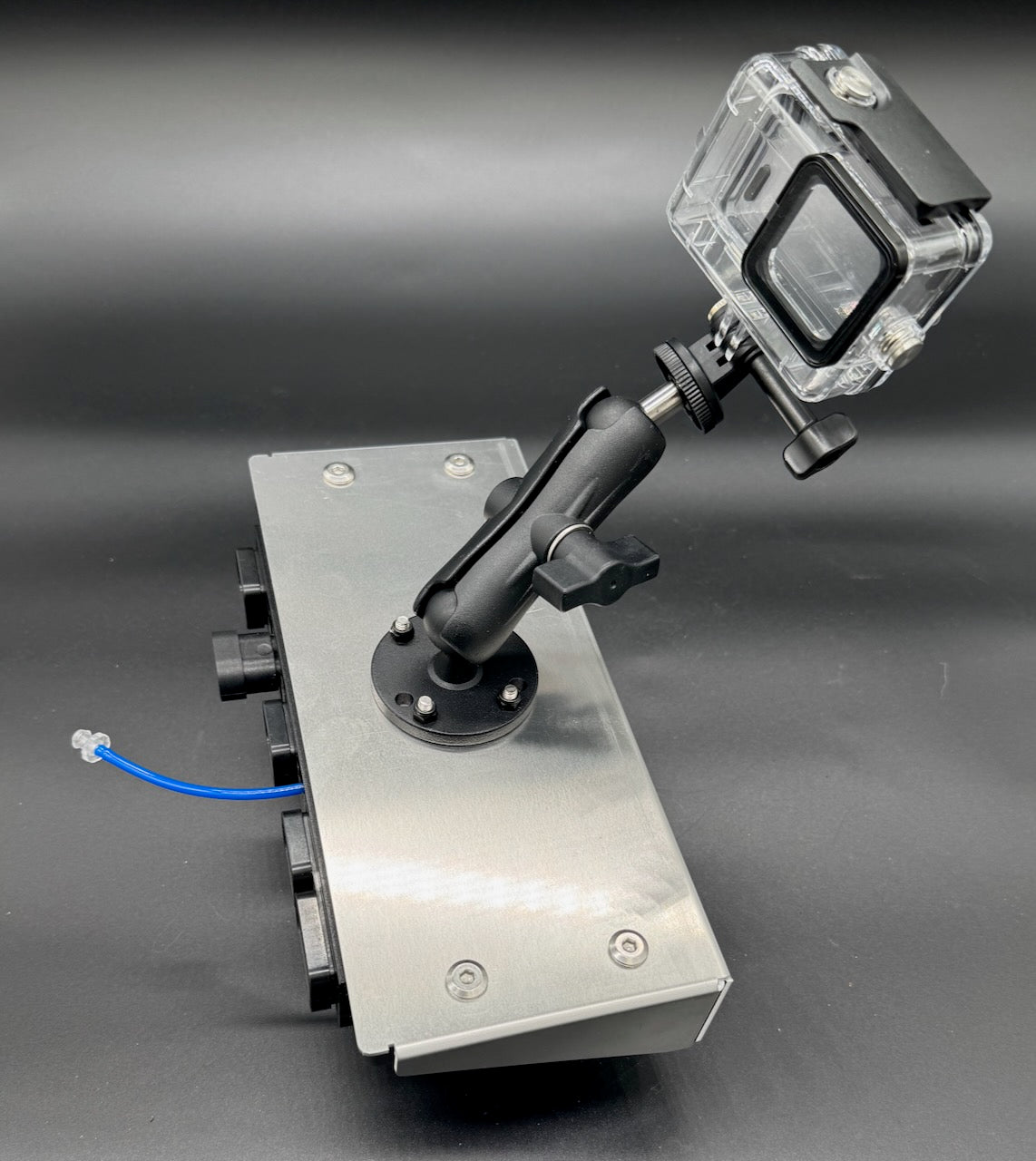

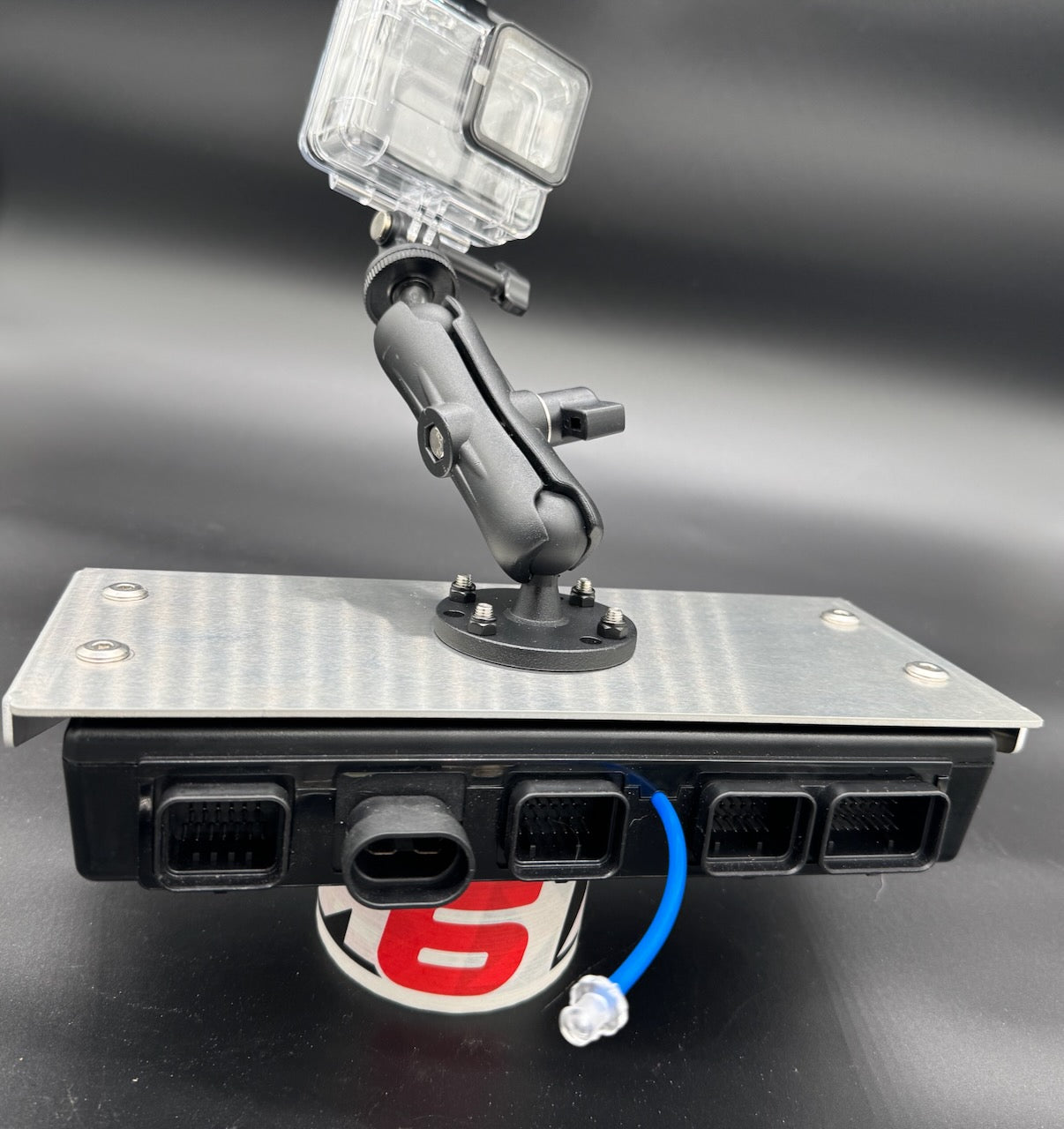

- AMPS pattern bolt holes precision drilled in the top surface of the mount allows for affixing any AMPS-compatible accessories like phone mounts, GoPro mounts, or even our custom 3.5" LCD AMPS mount

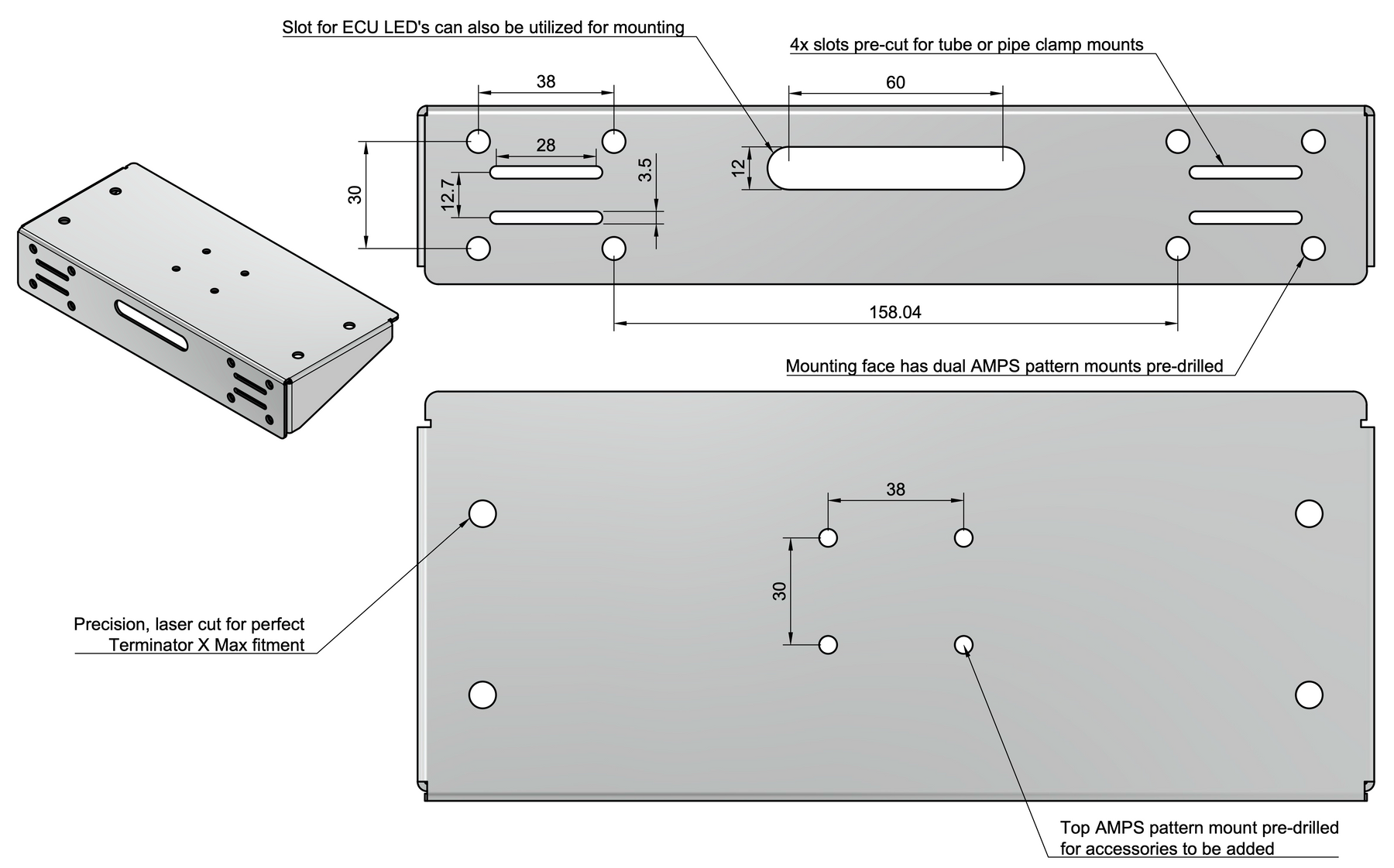

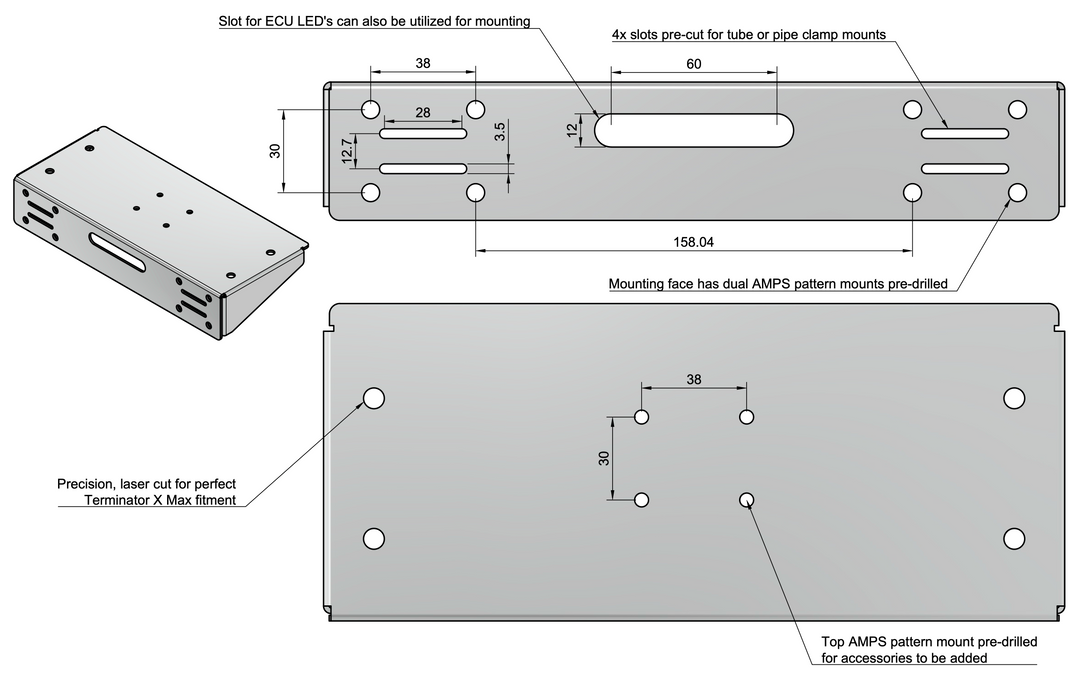

- The mounting flange includes 8x bolt holes in the AMPS pattern for permanent bolting or riveting to your vehicle, or even mounting to another AMPS-compatible mounting device or accessory such as a roll cage clamp
- The mounting flange also has slots cut for pipe clamps or strap mounting to your roll cage or interior trim

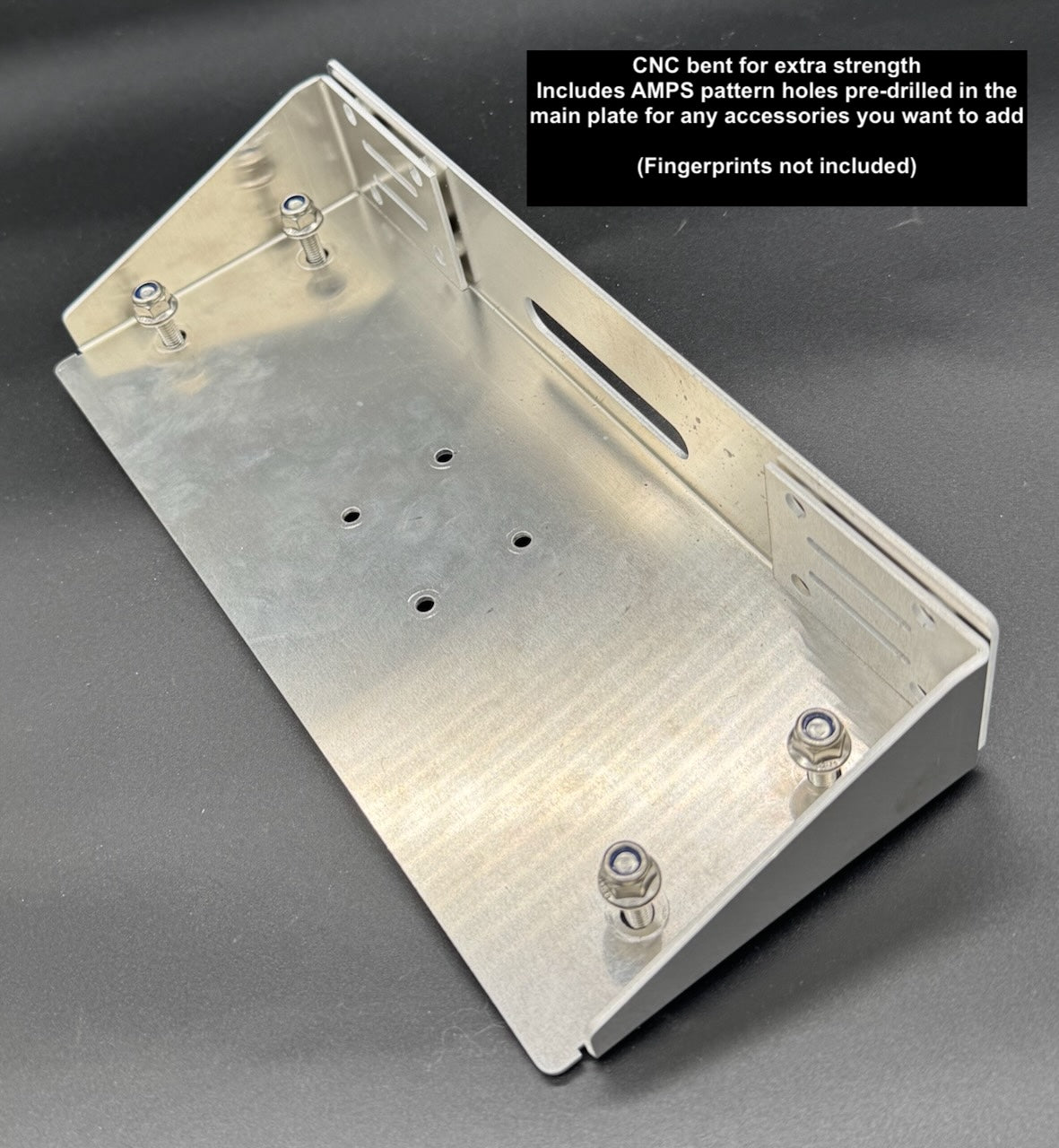

- Made of thick, laser-cut, precision bent 14-gauge aluminum

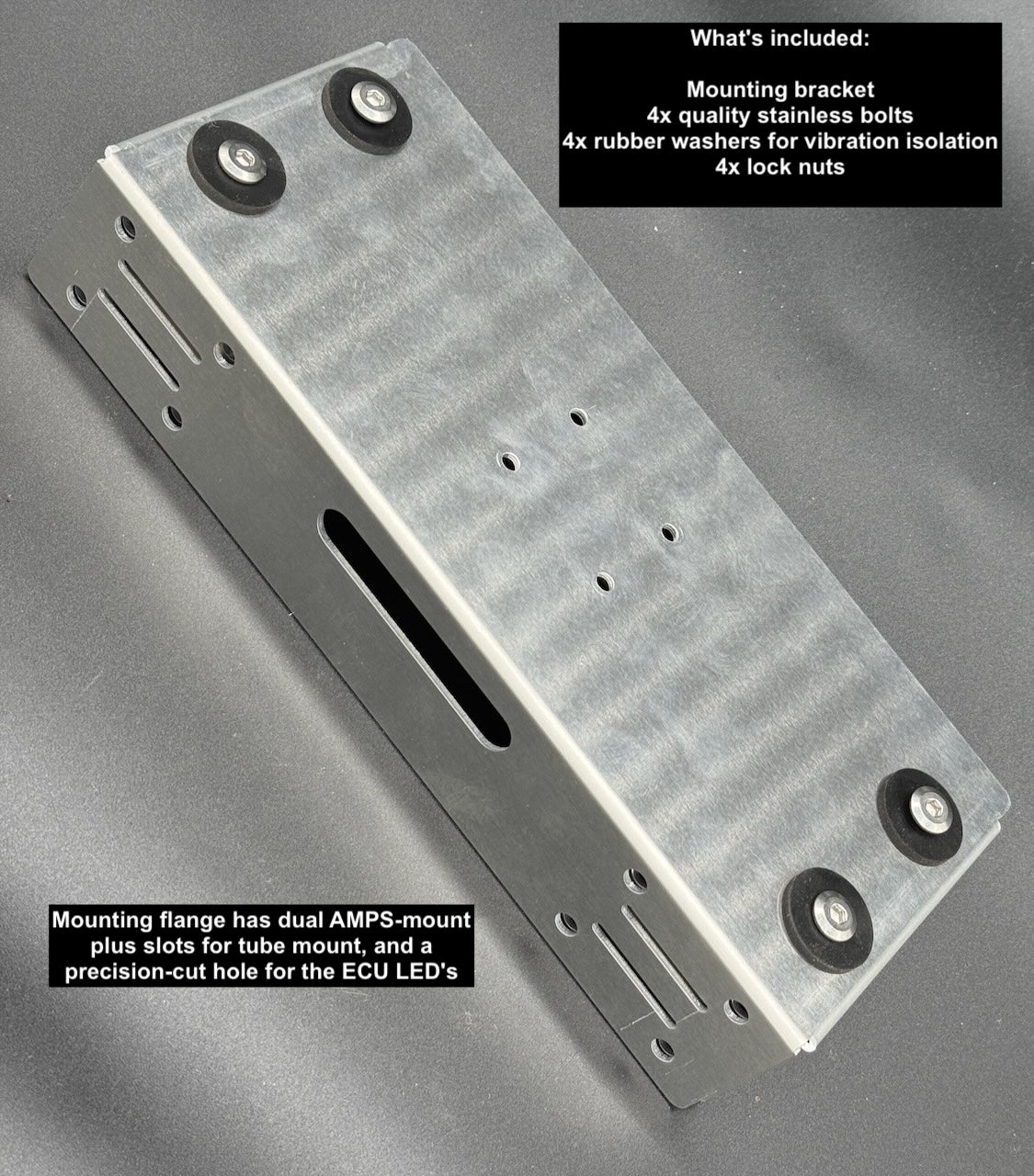

- Includes 4x nice looking bolts, nuts, and rubber washers for affixing the ECU to the mount; you must supply your own hardware / mounting method to affix the mounting bracket to the vehicle
- Awesome polished looking natural aluminum finish ('mill finish') that looks great in race cars, show cars, or can be painted or powder coated to match your custom build
This ultimate mount allows you to display your ECU, or safely hide it away in multiple orientations, with the ability to mount other accessories to the same mounting bracket - giving you the ultimate flexibility when it comes to customizing your ride!
(AMPS-compatible mounts/brackets/accessories and ECU pictured in the photos are not included - your order includes the 90° mounting bracket as well as 4x bolt/rubber washer/locknut sets for mounting your Terminator X Max to the mount. Custom installation required, of course)
